Electric Counterbalance Forklift MK Series 1.5-4.0T
01 - Product Description:
- Brand : MiMA
- Load Capacity: 1500 - 4000kg
- Max. Lifting Height: 7000mm
- Mast: Duplex or triplex

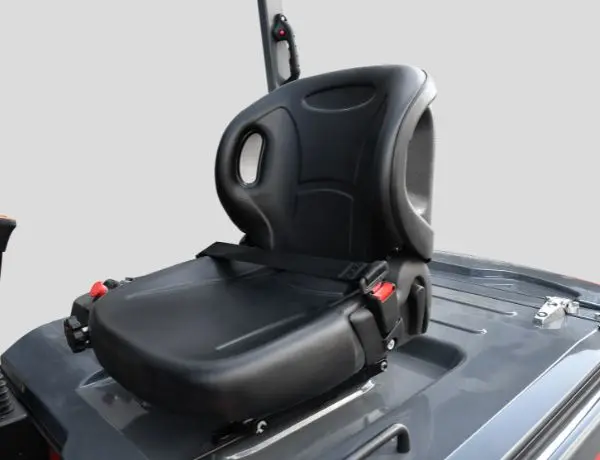

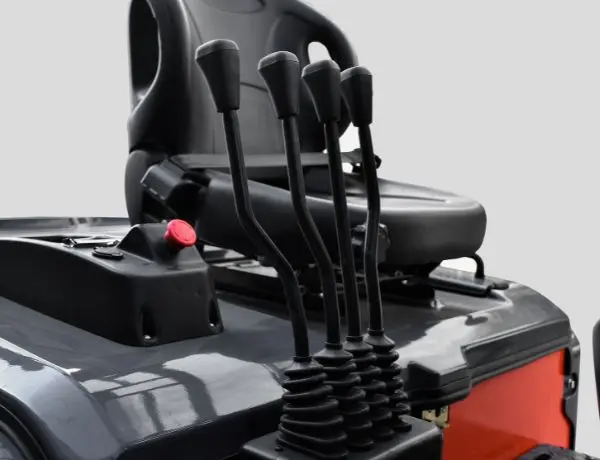

MiMA II generation electric counterbalanced forklift is designed to improve overall performance, including driving speed, lifting speed, climbing ability, passability, energy saving, noise reduction, etc. 1.5 tons to 4.0 tons electric counterbalanced forklifts all feature full AC motor technology, high power motors, and larger batteries, which can meet the needs of different usage scenarios. The perfect ergonomic design will bring users a new driving experience.
02 - Applications:
- Suitable for medium and heavy cargo handling and stacking.
- Suitable for entering and exiting containers and working conditions with limited space height.
- It can be equipped with various attachments to meet the needs of different working conditions.
Operation Videos
Generation II Electric Forklift Truck: What You Need to Know
Techinical Data
Model | unit | MK15 | MK20 | MK25 | MK30 | MK35 | MK38 | MK40 |
Power unit |
| Battery | ||||||
Rated Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 3800 | 4000 |
Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Standard Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Overhead Guard Height | mm | 2125 | 2150 | 2150 | 2180 | 2180 | 2180 | 2180 |
Length to Fork Face | mm | 2227 | 2430 | 2430 | 2547 | 2552 | 2552 | 2552 |
Overall Width | mm | 1120 | 1160 | 1160 | 1260 | 1260 | 1260 | 1260 |
Battery (voltage/capacity) | V/Ah | 48/480 | 48/600 | 48/600 | 80/500 | 80/500 | 80/500 | 80/400 |
2D View of MiMA II Generation 1.5-4.0T Electric Forklift
Shelf And Aisle Dimensions of MiMA II Generation 1.5-4.0T Electric Forklift
