Elektroschlepper MGC Serie 4,0 Tonnen
01 - Produktbeschreibung:
- Model No.: MGC40
- Load Capacity: 4000kg
- Stromart: Batterie
- Operation Type: Seated
The MFZ series is a stand-up reach forklift with a load capacity of 1.6-3.0 tons. Its mast can entirely extend forward or retract, featuring a compact body and small turning radius for enhanced efficiency.
02 - Anwendungen:
- Mittlere Lagerdichte mit hoher Umschlagshäufigkeit.
- Handhabung und Stapeln in engen Gängen.
Operation Videos
Spotlight on Reach Truck MFZ Series: What You Need to Know
Pure electric steering: Equipped with electric steering for effortless maneuvering, improved comfort, and enhanced efficiency.

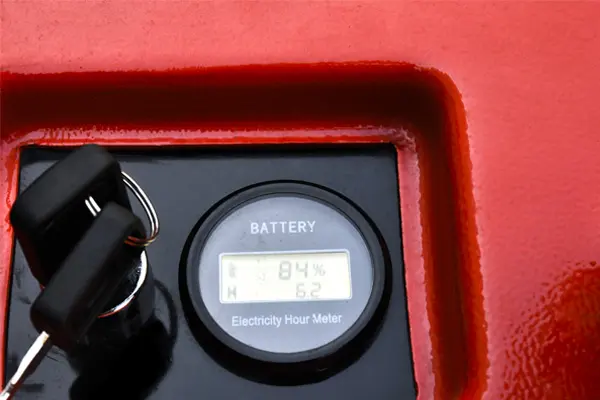

Multifunctional Intelligent Dashboard: Ergonomic design with multifunctional capabilities and a wheel display function for enhanced comfort and convenience during operation.
High-surplus Capacity Mast: This high-precision mast flawlessly maintains its load-bearing capability up to 6300mm and excels equally in high-level positions.
Adjustable seat: The seat can be adjusted forward and backward, providing operators with the most comfortable working environment and reducing fatigue.
Three-point structure: Vehicle designed to make the stacking operation more stable and flexible.
Height Preset System (optional): Optional height preset system available, one-button height setting, freeing hands and improving work efficiency.
MiMA Reach Truck MFZ Series Product Details
Modell | MFZ16S | MFZ20S | MFZ16M | MFZ20M | MFZ16H | MFZ20H | MFZ25M | MFZ30M | |
Leistungstyp | Batterie | Batterie | Batterie | Batterie | Batterie | Batterie | Batterie | Batterie | |
Antriebsart | Sitzend | Sitzend | Sitzend | Sitzend | 座驾式 | Sitzend | Sitzend | Sitzend | |
Tragfähigkeit | Q(kg) | 1600 | 2000 | 1600 | 2000 | 1600 | 2000 | 2500 | 3000 |
Lastschwerpunktabstand | C(mm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Betriebsgewicht (inkl. Batterie) | kg | 3700 | 4131 | 3700 | 4131 | 4120 | 4346 | 4760 | 4800 |
Neigungsbereich der Gabel: vorne/hinten | α/β(°) | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 |
Hubhöhe | h3(mm) | 4600 | 4600 | 4600 | 6300 | 6300 | 8000 | 8000 | |
Gesamtlänge | l1(mm) | 2345 | 2409 | 2345 | 2409 | 2404 | 2481 | 2524 | 2540 |
Gesamtbreite | b1/b2(mm) | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1300 | 1270/1300 |
Abmessungen der Gabeln | l/e/s(mm) | 1070/100/35 | 1070/122/40 | 1070/100/35 | 1070/122/40 | 1070/100/35 | 1070/122/40 | 1070/125/45 | 1070/125/45 |
Gabel außen gespreizt | b5(mm) | 232-728 | 254-750 | 232-728 | 254-750 | 232-728 | 254-750 | 250-750 | 250-750 |
Reichweite | l4(mm) | 555 | 613 | 555 | 613 | 496 | 541 | 652 | 736 |
Wenderadius | Wa(mm) | 1647 | 1747 | 1647 | 1747 | 1647 | 1747 | 1896 | 1996 |
Fahrgeschwindigkeit, beladen/unbeladen | km/h | 14/14 | 14/14 | 14/14 | 14/14 | 14/14 | 14/14 | 10/10 | 10/10 |

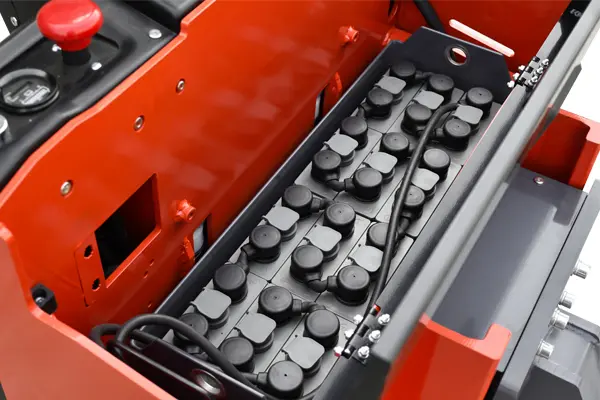

Batteriespannung/Nennkapazität | V/Ah | 48/420 | 48/560 | 48/420 | 48/560 | 48/560 | 48/700 | 48/700 | 48/700 |
Verfahren zum Austausch der Batterie | Front pull | Front pull | Front pull | Front pull | Front pull | Front pull | Front pull | Front pull |
